Bluetti AC200P - Reverse Engineering

I am the proud owner of a Bluetti AC200P. It’s a nice unit, but it won’t power on or charge.

When I pressed the power button, the green light surrounding it would flash 3 times - then go right back off. When I plugged in the charger, its indicator light did not turn red. The unit showed no response.

I contacted Bluetti support, but they were not much help diagnosing it. They said it needs a new charger, for $150. I had already tested the charger - 56V coming out of it. I opted not to waste $150 and began diagnostics. A lot of you guys probably already know all this stuff, but this was a fun journey so I thought I would post my findings for anyone else trying to figure this out.

I disassembled the unit down to the battery and BMS. I plugged everything back in, but in a way where I could peek in to see the BMS. I hit the power button, I saw the green LED on the BMS. Then I heard a click, and the BMS shut back off.

From what I can see, this is a 16S10P (16 series, 10 parallel) battery. This means there are 160 batteries, split into 10 groups of 16 cells each. Each 16 cell group is wired in series, producing 48V nominal. And then all 10 groups were wired in parallel.

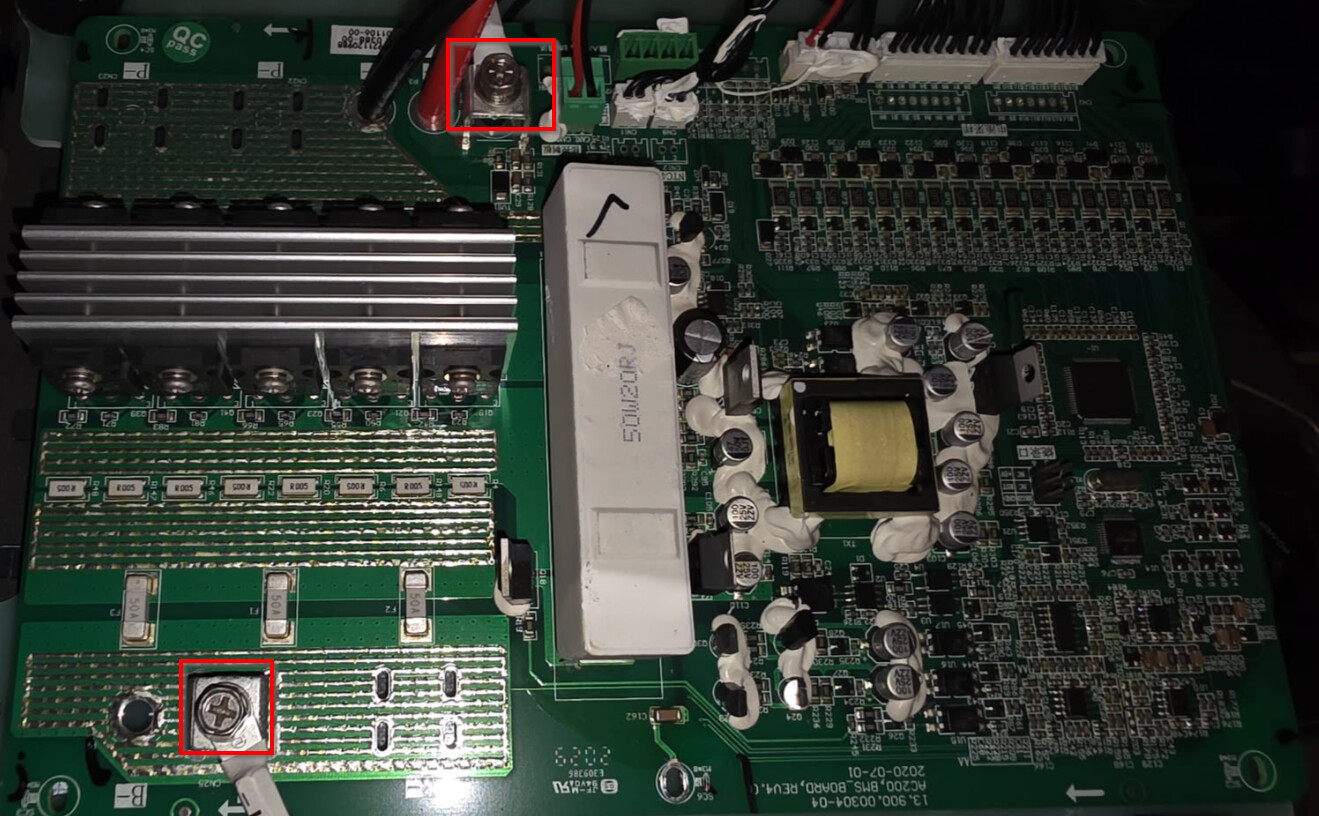

I checked the raw battery voltage at these terminals, it showed 53V. That ruled out over-discharge:

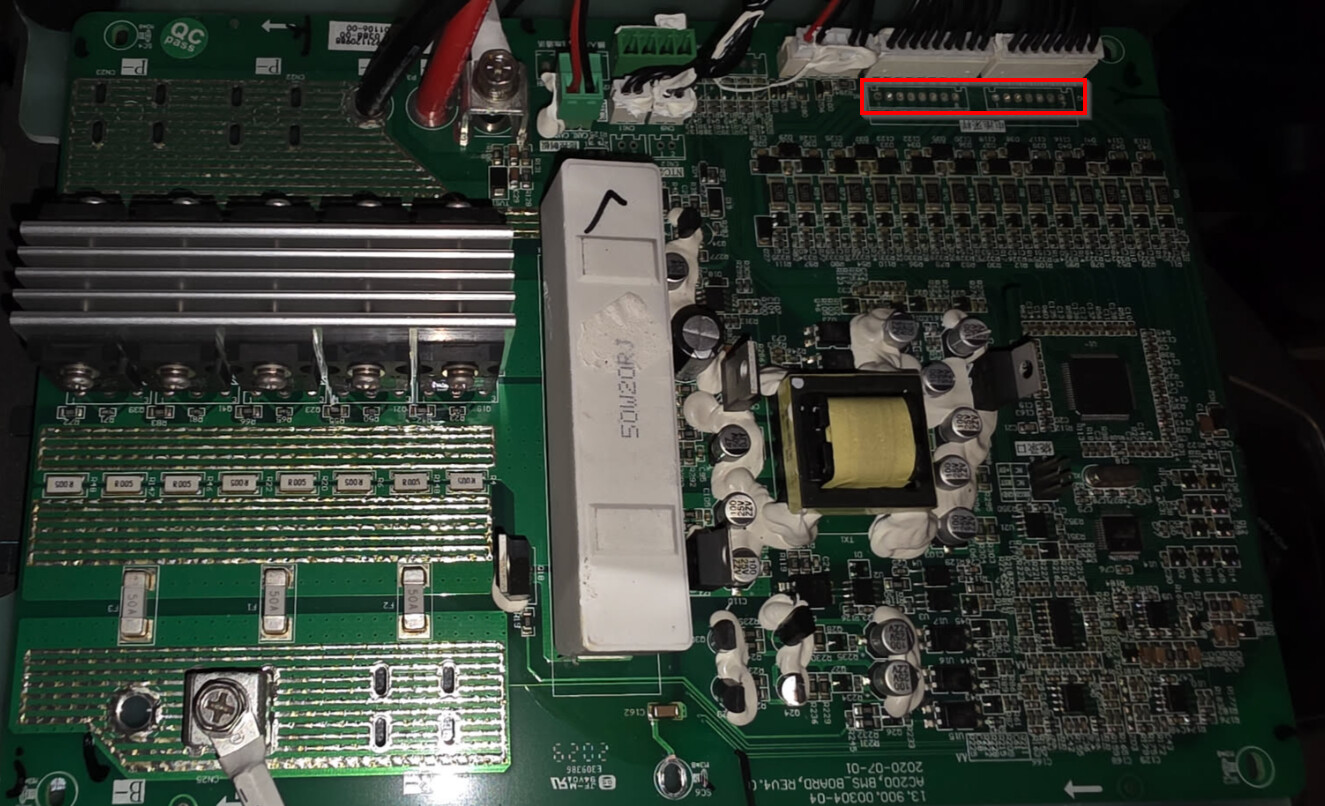

Next I checked the individual cell series using these pins. All were within 0.02V of one another, so that ruled out unbalanced cells:

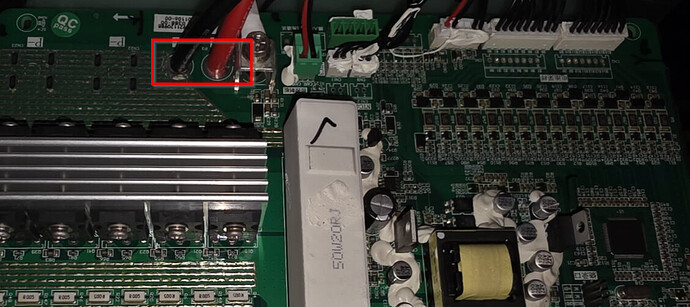

Next I checked the voltage on the BMS output for the few seconds it was powered on, it showed 0V:

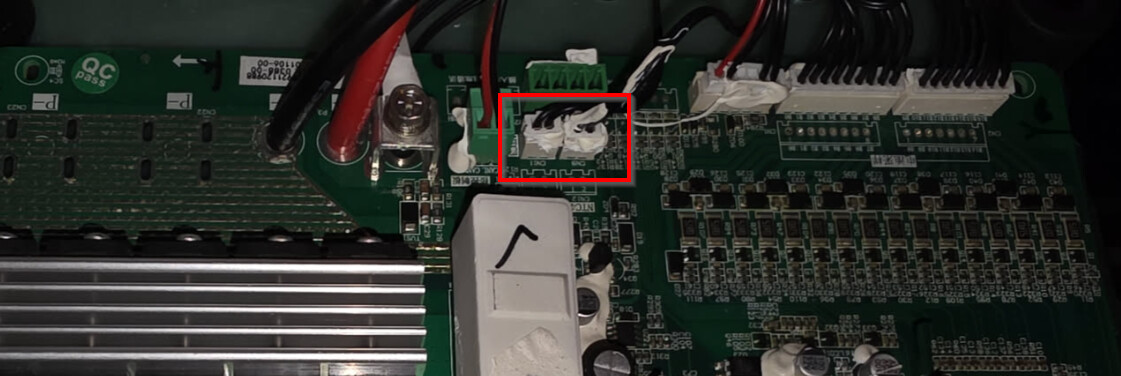

The click before shutdown made me think a component is shutting this BMS down, probably for safety reasons. I figured this could be the thermal sensors or a shorted output. Thermal sensors are here:

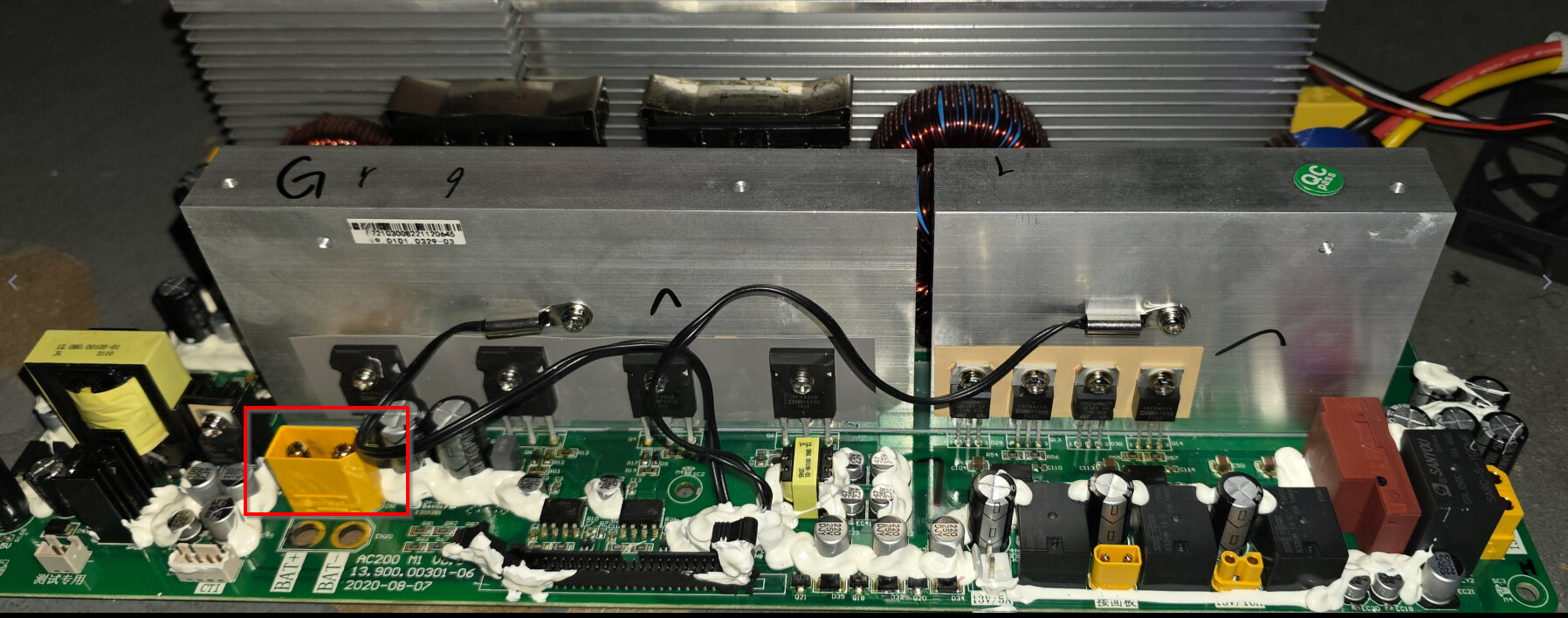

I opted to check the BMS output for a shirt first. The cables ends themselves didn’t show continuity. Then I checked the battery input on the power inverter board. Bingo! 0 ohm resistance:

I carefully looked over the inverter board, considering a DIY repair. I would probably have to desolder all the MOSFETS, gates and other things and check them individually. Even if I find the bad ones, they might just burn out again if I miss the actual root problem. Plus I’d have to fight through all this funky glue that’s holding it together. I opted not to go this route.

Armed (proudly) with my diagnosis, I contacted Bluetti support again. Lois was very nice, but knew nothing technical. She again insisted the charger was bad. I pushed back on this with my findings, and she brought someone else into the email chain - I assume a technician.

He tried to sell me a new charger again, I said no thank you. He informed me that I was welcome to ship the unit in for repair, at my expense. I said I already have it apart, and I know the part I need - and asked him to sell me the part. He said they don’t sell repair parts, they’d have to service it themselves. I asked how much it would cost to replace this board, he said he didn’t know - they’d have to diagnose it when it arrives and then give me a price.

Bluetti’s solution to this problem is to have me spend $100 or so on shipping costs just to find out how much it would cost me to fix this unit. Since the charger alone is $150, I have to assume the repair would have cost a minimum of $300 plus shipping.

This is my reason for refusing to do so: I can spend upwards of $400 (just my guesstimate) for a repair on this unit that has a limited lifespan remaining on the battery. Once the battery goes bad, all of this expensive, proprietary, one-off circuitry (that I’m paying to replace) is now worthless to me.

I looked at this box of parts and took inventory:

  • Box itself - battery fits nicely, has a nice set of AC/DC/USB plugs and boards that may be reusable, nice fan slots up top
  • Battery - still putting out voltage and still in balance
  • BMS - I think it communicates via some kind of CAN bus design that I have no interest in reverse engineering, but it may still be reusable for the safe charge/discharge of the battery pack
  • Power inverter - proprietary, and burned out anyway
  • LCD & mainboard - proprietary and reliant on CAN bus, likely not reusable

I opted to rebuild the box with my own parts - non-proprietary parts that belong to me and can be reused on the next build or project. I will detail my progress on that journey in my next post.

3 Likes

I wonder if the extended warranty might apply if you fill in the form:

Is your AC200P less than 4 years old?

I just got an Elite 100v2. The 5 year warranty was a significant attraction.

Thanks for the info on this. I wasn’t aware of the extended warranty. However, I purchased this unit second-hand and have no information or documentation of the original purchase date - so customer support never suggested this route.

To confirm my theory, my next step was to unplug the inverter board from the BMS and jumper the BMS power-on pins. The BMS powered on and stayed on, confirming that the inverter board was the source of the problem.

Once properly powered on, the BMS delivered 53V to its output terminals.

Next, I wanted to confirm that the BMS could act independently to properly charge/discharge the batteries without interaction from the inverter or main board. A typical “safe” range for these batteries is 40V → 54.4V. I was hoping the BMS would keep the minimum above 48V, as I’ve read that this extends the life of the batteries.

I connected a 48V inverter to the BMS power output and ran a small load (box fan + lamp) for around 24 hours total (I sat it beside me during my workday so I could monitor for safe voltage). The voltage dropped down to 46.7V then the BMS shut it down. Not 48V, but not bad either.

Next I wired the OEM charger directly to the BMS output for charging. The red light turned on and charging began. While plugged in, the voltage can show ~59V but I unplugged the charger periodically to check the BMS voltage. It charged to 54.2V and then stopped charging.

This confirms some good news, and something I do like about the bluetti design - the battery and BMS are able to operate independent of the rest of the circuitry. Now I don’t have to worry about purchasing another BMS to manage the cells.

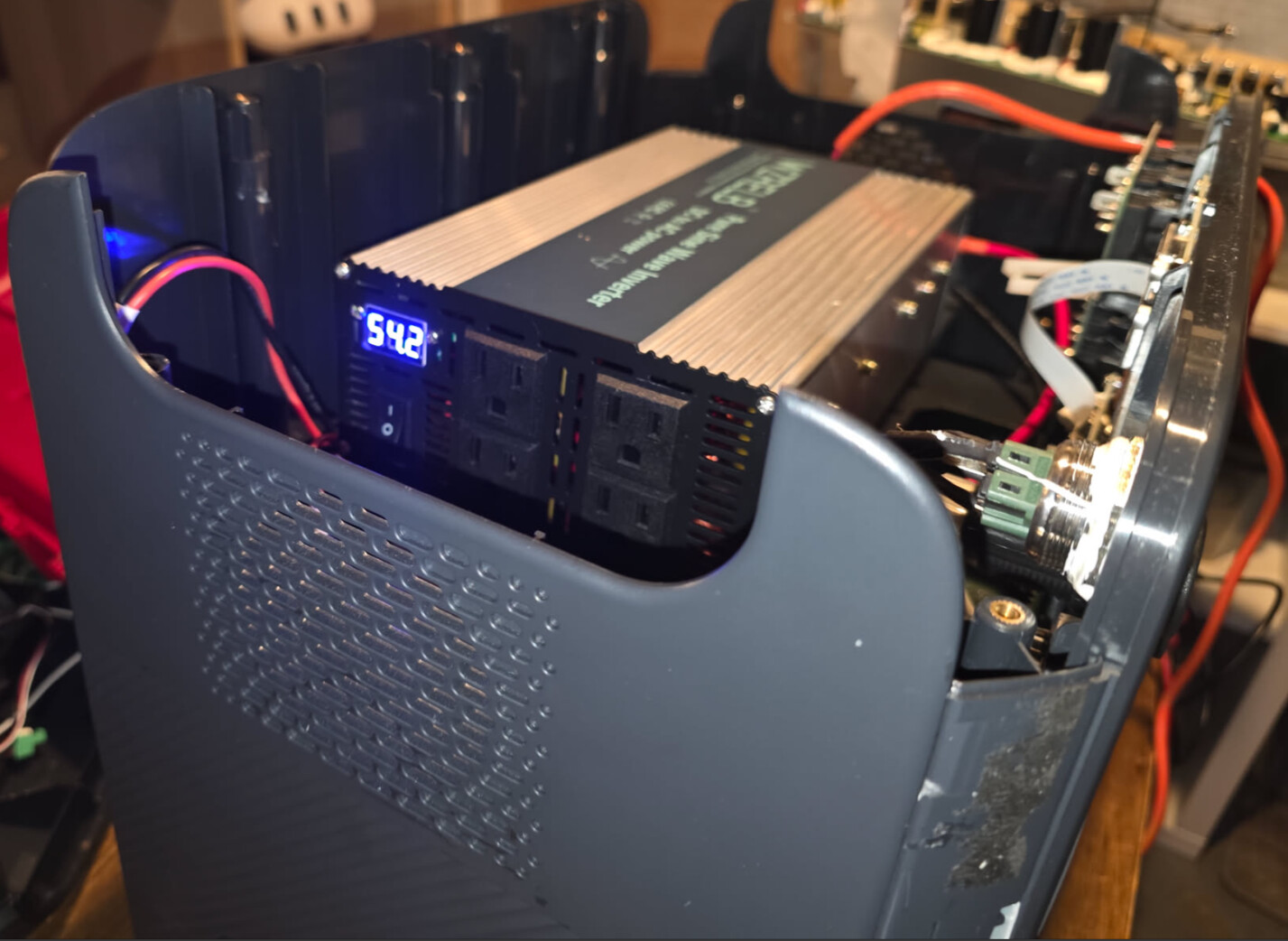

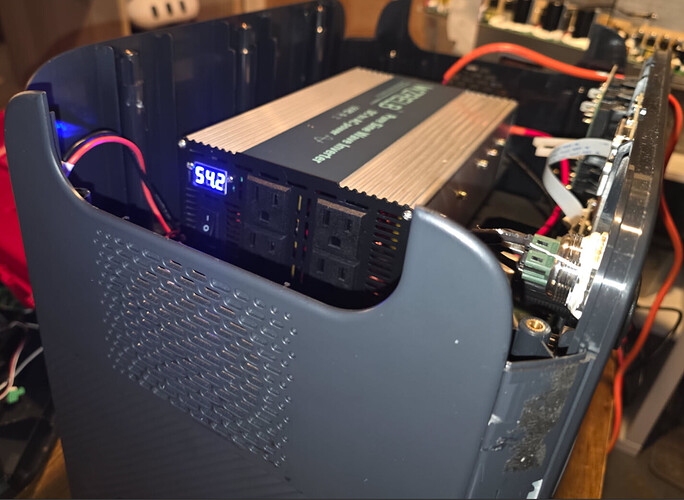

This is as far as I have taken the project so far:



Next steps:

  • Install a bus bar/distribution block for the 48V DC output
  • Install an 80A ANL fuse for the 48V DC output
  • Wire the 120V AC output from the inverter to the input terminals on the 120V plug board
  • Install a 48V → 12V step-down converter, and wire it to the input terminals on the 12V plug
  • Consider a relay and control-board to disconnect output voltage at 48V
  • Figure out how to wire up the USB charging board

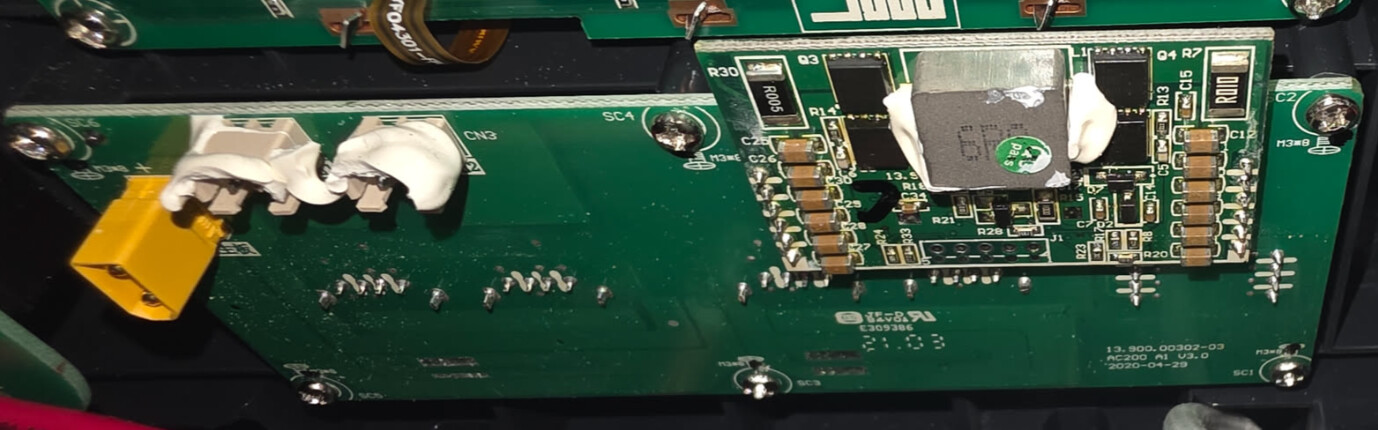

This is the USB charging board:



I’m hoping it accepts 12V and steps it down to the needed 5V, but I need to research that further. The yellow plug is the input power, the two white plugs go out to the wireless chargers on top of the unit.

Question for the pros: Where is a good place to buy this sort of hardware? Bus bars, ring terminals, etc. Amazon seems high. AliExpress is around half the price of amazon, but long shipping window. I can’t find much local.

2 Likes

I’m not a pro but NAZ Solar Electric immediately comes to mind, if you’re in the US. Diysolarforum.com is a good place to ask this type of question too.

If the board has a blown mosfet maybe you can find it with a multimeter, without having to unsolder all of them?

2 Likes

Thank you for the tip. That forum looks fascinating, I’m already deep into several interesting topics.

And yeah, that might work - but it’s tough to figure out when the entire output is shorted. I’m not entirely sure what to look for. Plus, a bad MOSFET might be causing the short, but there’s a decent chance something else caused it to fail. And it will just fail again.

Have you ever done this level of troubleshooting on a board? It does sound like an interesting challenge.

Hi @steveh_131, In general, we do not recommend customers disassemble the unit themselves, as non-professional handling may cause damage to the power station.
However, based on your description, we believe you are a very professional person in the industry. Please operate under the premise of ensuring safety.
It seems you have already contacted our customer service team. Could you please inform us of your service ticket number? We will check whether the local repair warehouse can provide additional assistance according to your situation.
Thank you, @paulr, for your attention and explanation.

1 Like

@BLUETTI_CARE thank you for the response. My service ticket # is 309414.

I’ve done component level troubleshooting on boards though not these power things. But, MOSFETS burn out sometimes. A good electronics forum is EEVblog Electronics Community Forum - Index where you could ask for troubleshooting help. They are better than I am about it. I dabble in electronics but am mostly a software guy.
